Blackmagic Streaming Encoder 4K Review: A Simple Guide for New Streamers

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Broadcasting live video to the internet often requires managing an expensive computer equipped with capture cards, complex broadcasting software, noisy internal cooling fans, and unpredictable operating system updates that can freeze an entire production mid-broadcast. For beginners, educators, volunteer church teams, and small business owners, troubleshooting computer performance issues while trying to engage an online audience creates needless friction. A dedicated hardware streaming box eliminates the workstation entirely, handling the heavy computational burden of video processing within a single purpose-built enclosure.

The Blackmagic Streaming Encoder 4K provides a reliable answer to this challenge by offering a self-contained broadcast solution engineered to send Ultra HD video straight to major streaming platforms. Identified under the technical catalog designation blackmagic design dvresfayefccs, this compact unit packages professional video conversion, automated network redundancy, and physical hardware controls into a rugged metal frame. It delivers a streamlined, dependable path to online video delivery for creators who want broadcast reliability without the headache of managing a dedicated streaming PC.

Blackmagic Streaming Encoder 4K Features Explained

Standalone PC-Free Streaming Hardware

Traditional live video production usually demands a powerful desktop computer running demanding software to capture camera feeds, compress the frames, and push the data out to internet servers. The Blackmagic Streaming Encoder 4K functions as a true standalone broadcast streaming box containing its own specialized processor. It encodes video internally using modern H.264 or highly efficient H.265 compression, streaming directly to destinations such as YouTube, Facebook, Twitch, X, Zoom, Microsoft Teams, and custom RTMP or SRT destinations over an Ethernet network connection.

By shifting all computational work onto a pc free live streaming encoder, creators eliminate common PC pitfalls such as dropped frames from background virus scans, unexpected operating system restarts, or overheating hardware. As a modern 4k srt rtmp encoder hardware unit, it can deliver video feeds up to 2160p at a smooth 60 frames per second. This makes high-end Ultra HD broadcasting accessible even in temporary venues where setting up a large computer workstation would be impractical.

12G-SDI Input with Teranex Standards Conversion

Professional video cameras connect using SDI cables, which feature locking BNC connectors designed to prevent accidental disconnects during a live show. This encoder is equipped with a 12G-SDI input that supports signals up to DCI 4K at 60 frames per second, alongside an SDI loop output that allows you to pass the clean video feed directly to other hardware or secondary recorders. For productions utilizing cinema cameras such as the black magic pocket cinema series paired with an SDI converter, this interface provides a dependable broadcast pipeline.

A standout internal capability of this device is the integrated Teranex processing engine. In live broadcasting, mismatching frame rates or differing video resolutions between cameras and streaming platforms can cause black screens or distorted images. The Teranex standards converter automatically evaluates whatever video format arrives at the SDI input and cleanly converts it to the exact resolution and frame rate chosen for the stream, ensuring consistent video output regardless of source variations.

Redundant Connectivity with Automatic Mobile Failover

A sudden internet outage is one of the most stressful occurrences during a live broadcast. To safeguard productions, this device incorporates an intelligent blackmagic streaming encoder failover system. The primary network connection runs through a standard Gigabit Ethernet port wired to your local router or network switch. If that primary internet connection falters, the unit can instantly switch to a mobile data connection supplied by a tethered smartphone plugged into one of the USB-C ports.

This automatic switchover between wired Gigabit Ethernet and 4G or 5G mobile data keeps your stream live without interrupting the viewer experience. The encoder continuously monitors the stability of the active link, falling back to mobile data when necessary and returning to the wired network once service restores. This failover functionality is invaluable for remote field broadcasts, hotel conference rooms, or outdoor events where venue internet can be unpredictable.

Dedicated Monitoring Outputs for Production Confidence

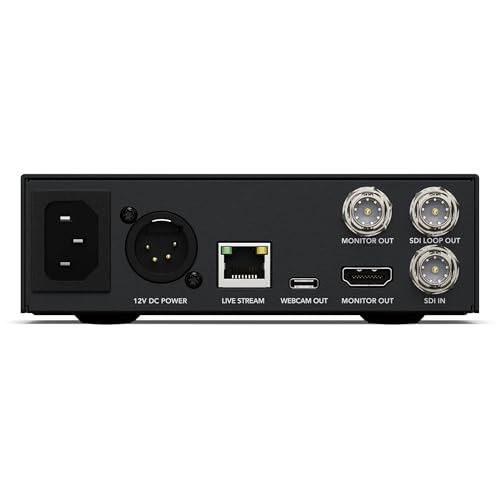

Having total visibility over what your audience is watching is essential for any production team. The unit includes independent 12G-SDI and 4K HDMI monitor outputs, allowing creators to connect external production displays, consumer television sets, or confidence monitors right beside the encoder. Each of these monitor outputs includes its own user-configurable standards converter, operating completely independently from your primary streaming resolution.

This flexibility means you can push an Ultra HD 4K stream to your primary online destination while simultaneously feeding an HD 1080p signal to an on-stage confidence monitor or a secondary downstream recording device. Broadcasters also benefit from advanced broadcast metadata support, including the ability to embed CEA-608 and CEA-708 closed captions directly into live RTMP streams, pass source timecode over RTMP and SRT, and control settings remotely via an Ethernet-based REST API.

Front Panel Controls and USB Webcam Versatility

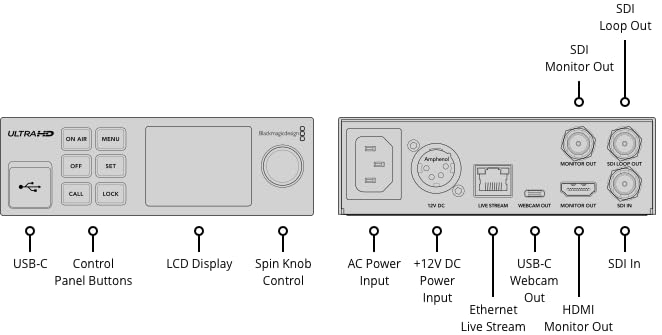

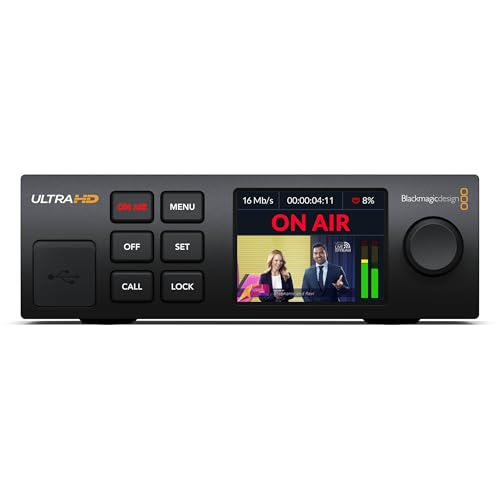

Many hardware encoders lack any built-in interface, forcing operators to configure everything through hidden web menus on a separate laptop. In contrast, this unit features a complete front control panel fitted with six push buttons, a tactile spin knob, and a bright 2.2-inch color LCD. The integrated display allows operators to preview the live incoming video feed, verify audio levels, check network bitrate, and modify critical stream settings without opening external software.

In addition to standard network broadcasting, the dual USB-C ports can function as plug-and-play webcam outputs. When connected to a computer, your operating system recognizes the broadcast-grade SDI video feed as a standard webcam. This feature allows creators to route professional SDI cameras directly into software like Zoom, Skype, Microsoft Teams, or OBS without needing capture cards or third-party drivers.
